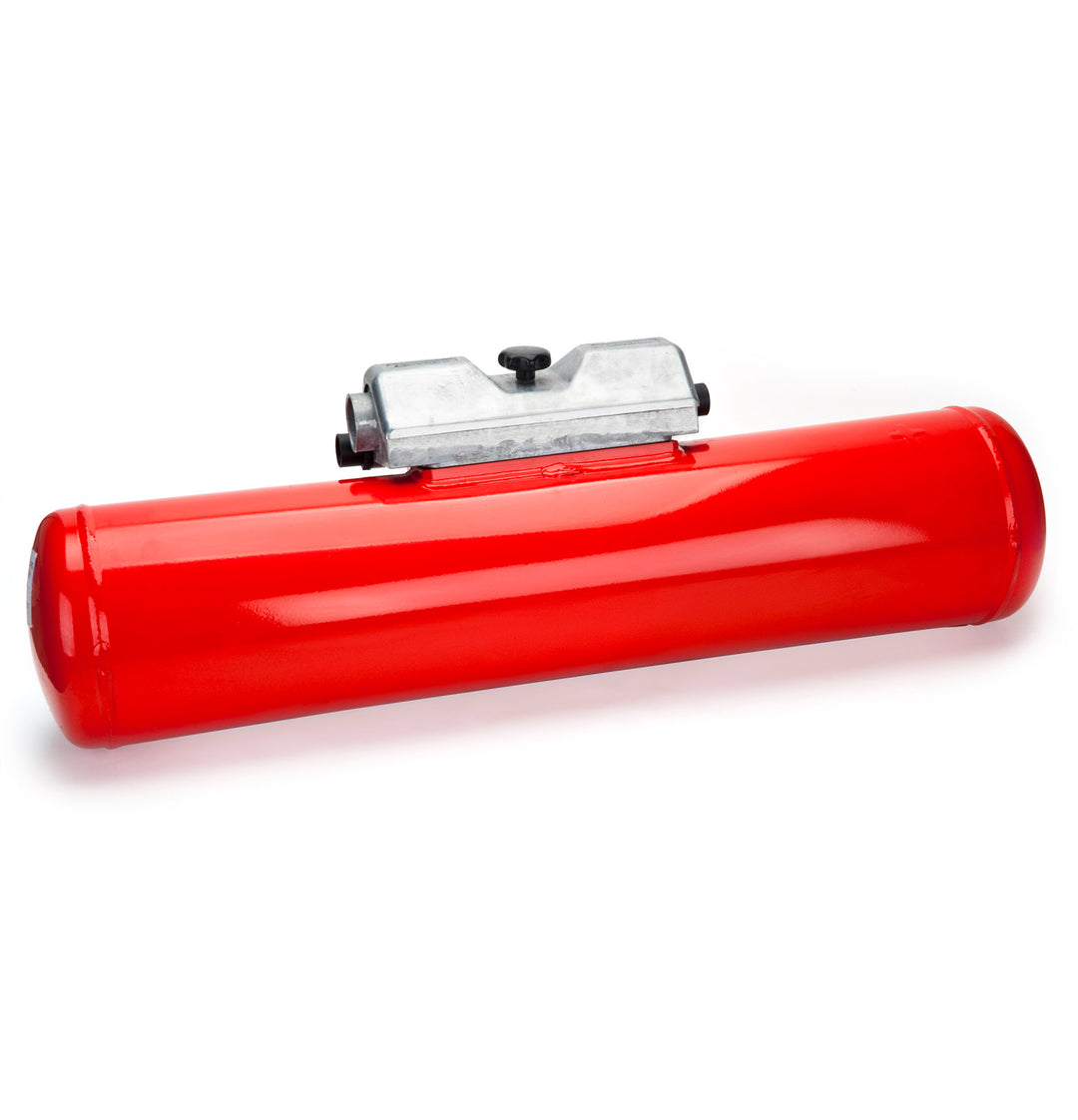

25lt x 200mm Automatic Underslung Gas Tank

Special Order Item

Electronically Operated 25 ltr tank, pre-installed valves & airbox

Please make sure this tank 100% fits the location and vehicle you have before purchase. Please contact us first of you are unsure. Special order items are exempt from normal returns.

• All self refillable gas tanks are fitted with an automatic 80% float driven shut off filling valve, meaning it will automatically shut off the filling gas pump when the tank becomes 80% full.
• Popular reduced weight 200mm tank
• All horizontal vapour tanks ( EASYFIT or Standard) are certified to the EU R67 regulation. Fully EU approved.
• Tanks come pre-valved, leak tested and with its own manufacturing and approvals certificate plus we sell them with anti corrosion black powder coated protective aluminium valve protection air box.

If your new to our Remote Electric Shut off tanks here's a couple of things to remember:

1) When buying this tank you will need some way of turning the remote operated electric valve on and off. We stock the 3 wire 9 LED with integral On/Off

2) You may need to buy individual-parts which are all available on our website to complete the install e.g. fill point, brackets, hoses, electronics and so on.

3) EASYFIT gas tanks do not require separate straps, hoops or frames for mounting and fixing to a vehicle is simple as they only require 4 x M10 bolts & penny washers for fixing through the vehicles steel floor to comply with N1/M1 legal fixing requirements.

Alternatives are available if required for other purposes such as: pre installed wooden insulated floors - OEM Chassis and Al-Ko brackets. If your fitment choice is directly bolting the tank in place through a steel floor we always recommend this is done in a location where you can gain access to the bolts ( with ease ) at any time in the future.  This is so the tank, which might need to be removed due to damage to it or when the vehicle goes in to a paint shop ( Paint oven ) or in 10 years time when the tank needs retesting, can be removed without having to worry about lifting internal floors or fitted furniture.  So if in the future you are unable to gain access to the bolts you fit ( when fitting a wooden floor over it for example ) we recommend using through floor mounintg system which allows the tank to be removed at anytime from under the vehicle so no internal access is needed

Must Buy Check List:

• Rubberised Underbody Spray
• Level Sender
• on/off
• pigtail

Optional Parts

• Fill point
• Brackets
• Gas Level Indicator
• Fitting Kit
